In 1967 Sugden released the world’s first solid state pure class A amplifier, the A21.

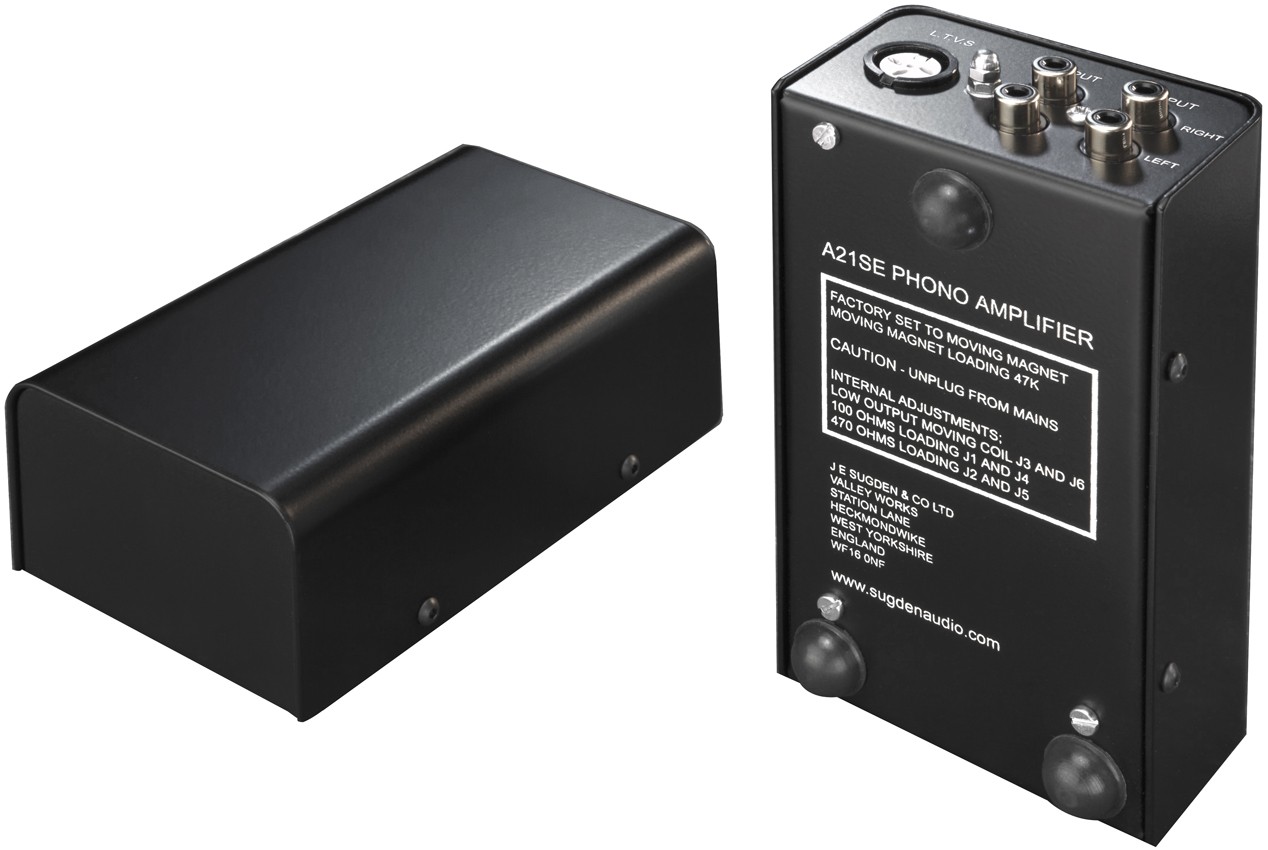

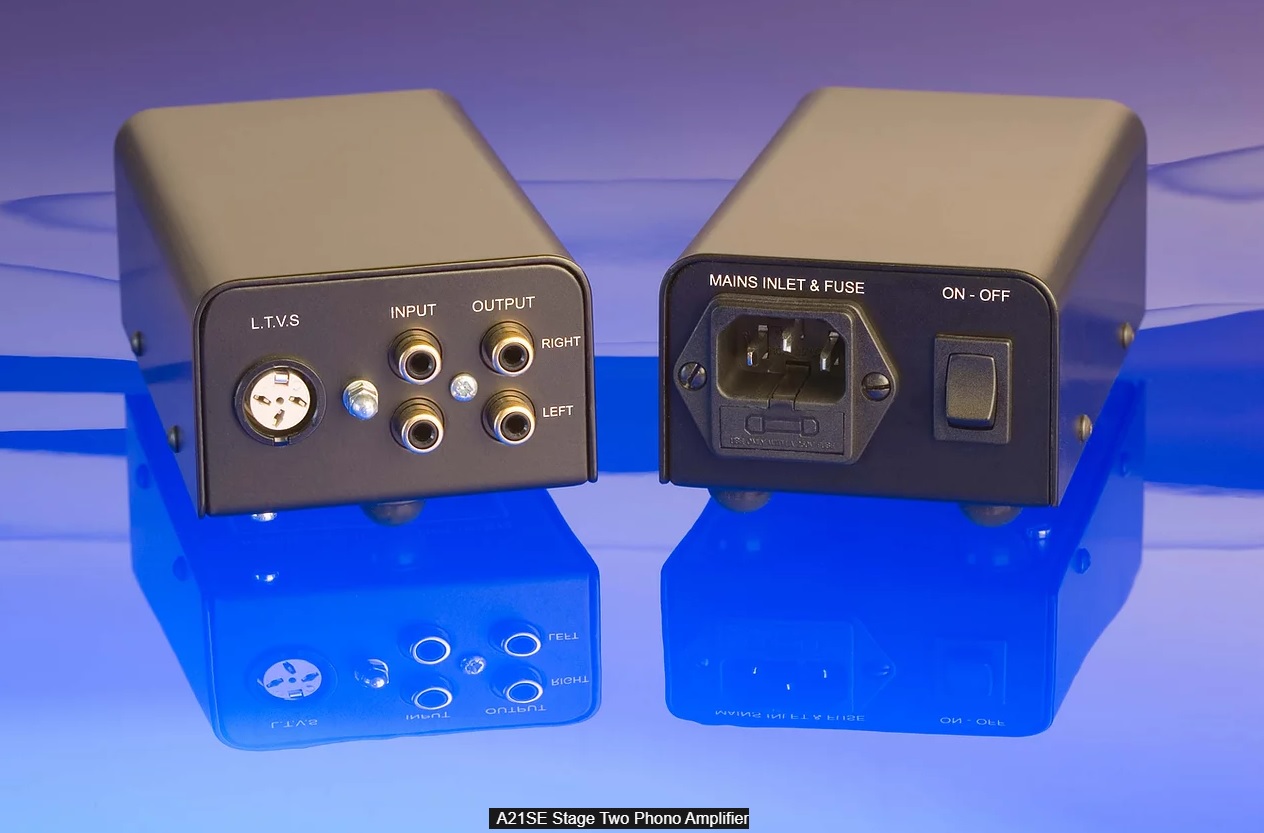

The Sugden A21SE Stage Two phono amplifier is a purist phono stage for both moving magnet and moving coil turntables. Comprimising of a heavy duty design,
the Stage Two is made of a separate pre-amp section and power supply section meaning that any unwanted electrical noise from the power supply is minimised.
The Sugden phono stage seems set to carve out a place among many other models of the same level. To get the authentic analog sound, though, at least the one in my mind, a pair of opamps and a quite good power supply are not enough.
The A21SE has a meaning and a dimension as a completion of a system which includes a modern integrated amplifier without a phono stage, or as an instrument to make appreciate our vinyl records.
technical specifications
Inputs: Moving magnet, Moving coil, LTVS power in
Outputs: Fixed line level output
Gain adjustment: Internal selection for MM or MC
Load Adjustment: Internal for MC 100 and 470 Ohms. MM fixed load 47k
Earth terminal: Screw type
External power supply: Mains powered
Input sensitivity: MM 3.0mV MC 0.15mV
Output: 350mV
Frequency response: +/-1.5dB 20Hz-20kHz
Signal to noise:>64dB
Gross weight (packed): 2kgs
Dimensions: Phono amplifier 140x60x77mm (WxHxD) - Power supply 140x60x77mm (WxHxD)
The A21SE stage two has a mains power supply and cannot be operated by the A21SE LTVS
